Safety Implications of Managed Lane Cross Sectional Elements

CHAPTER 4: DATA COLLECTION

Defining Segments

Segments were defined by the location of managed-lane access control change. A new segment would start when access was (or was not) permitted. Each segment was then defined as being managed lane weaving, ramp, or non-weaving segment. For this study only those segments that were non-weaving segments were included in the analysis. The objective of this project was on the effects of cross section dimensions on crashes. Because of limited number of sites with five, six, or seven general-purpose lanes within the preliminary datasets, those California sites were removed from the analysis resulting in the analysis considering crashes on freeways with three and four general-purpose lane freeways in California. For Texas, freeways with three to five general-purpose lanes were included.

The minimum length of segment for California was 0.11 miles with the majority of sites between 0.8 and 1.7 miles. The minimum length of segment for Texas was 0.12 miles, with the majority of sites between 0.9 and 1.4 miles.

After removing sites where weaving was expected, locations undergoing construction, and locations with no annual average daily traffic (AADT) data available, there were 128.0 miles in California (all 128.0 miles with flush buffers) and 60.4 miles in Texas (41.7 miles with pylon buffers and 18.7 miles with flush buffers).

Variables

For each segment identified, the research team collected geometric characteristics using Google Earth, a software package that allows browsing and measuring satellite imagery. Since this package allows the user to compare satellite images taken at different points in time, the research team annotated the date of the earliest satellite image containing the same managed lane characteristics. In other words, the research team noted the earliest date when the managed lane characteristics matched. In most cases, the change reflected when the managed lane was added to the freeway. This step was done with the purpose of excluding any time period earlier than the date when the managed lane geometric characteristics changed.

Table 4 provides descriptions of the specific geometric variables considered for the analyses along with the average daily traffic variables. The research team gathered the information for the geometric variables by using the measurement tool available in Google Earth. These variables were selected because they have been shown in the literature to be potentially influential on freeway safety. The research team acquired the posted speed limit information by using the StreetView feature available in the Google Earth suite of tools.

Table 4. Description of candidate variables.
Variable Name Description
AADT Annual average daily traffic for the freeway (vehicle/day)
AADTHV Annual average daily traffic for the managed lane (vehicle/day)
AADTMainL Annual average daily traffic for the general-purpose lanes (vehicle/day)
Buf_Type Buffer type between managed lane and general-purpose freeway lanes – either pylons or flush
Buf_W Buffer width (ft)
GP_Trvl_W General-purpose lanes, travel width for general-purpose lanes, determined as number of lanes multiplied by average lane width (ft)
GP_Adj_W General-purpose lanes, width of lane adjacent to the managed lane (ft)
GP_All_Ln_W General-purpose lanes, width of all general-purpose lanes (ft)
GP_Avg_Ln W General-purpose lanes, average lane width (ft)
GP_Ent General-purpose lanes, number of entrance ramps within the segment
GP_Exit General-purpose lanes, number of exit ramps within the segment
GP_NumLn General-purpose lanes, number of general-purpose lanes that are not barrier separated and are moving in same direction
GP_R_Shld_W General-purpose lanes, right shoulder width (ft)
GP_Weave General-purpose lanes, number of weaving areas within the segment
ML_Env Managed lane envelope, sum of left shoulder width, lane width, and buffer width (ft)
ML_L_Shld_W Managed lane, left shoulder width (ft)
ML_Ln_W Managed lane, lane width (ft)
PSL Posted speed limit (miles per hour)
T_Trvl_W Total travel width (ft)

Source: Texas A&M Transportation Institute

Dataset Characteristics – Geometrics

Table 5 provides geometric details for the segments being used in the evaluation.

All of the buffers for the California segments were flush (i.e., no pylons) with widths that varied between 1 ft and 12 ft. The buffers generally consisted of white and yellow lane line markings. The larger widths (9 or 12 ft) were associated with preserving space for a downstream managed lane ramp on I-405 as illustrated in Figure 6. I-405 also has narrow buffer widths. Several freeways have buffers with a 4-ft to 5-ft width as shown in Figure 7. Figure 8 shows another example of a wide buffer where a motorcycle is using the available space.

The buffers in Texas include flush buffers and flush buffers with pylons. The Texas sites with flush buffers ranged between 1.5 and 5.0 ft, while the buffers with pylons were between 4.0 and 6.0 ft. The buffer pavement markings in Texas use white lines. Figure 9 shows an example of pylons on a Texas freeway.

Table 5. Range of managed lane envelope geometric data by corridor.
Hwy Dir F or P NW Length (mi) SW-Min SW-Avg SW- Max LW-Min LW-Avg LW-Max BW-Min BW-Avg BW- Max
CA 105 EB F 9.44 8.5 10.8 13.0 10.5 10.9 11.5 4.5 4.8 5.0
CA 105 WB F 13.39 8.0 10.7 20.0 11.0 11.6 12.0 5.0 5.0 5.0
CA 134 EB F 8.07 1.0 3.5 15.0 10.8 11.2 12.0 1.5 1.5 1.5
CA 134 WB F 7.55 1.0 1.3 2.0 11.0 11.2 11.5 1.0 1.6 2.0
CA 210 EB F 19.13 1.0 7.0 20.0 11.0 11.3 12.0 2.5 3.2 5.0
CA 210 WB F 14.16 1.0 7.9 20.0 11.0 11.4 12.0 2.5 3.4 5.0
CA 405 NB F 29.7 1.0 4.0 33.0 10.0 10.7 11.5 1.0 2.6 12.0
CA 405 SB F 26.56 1.0 4.1 21.0 10.0 11.1 12.0 1.0 3.5 12.0
TX 75 NB P 11.0 3.0 3.2 3.5 11.0 11.2 11.5 4.0 4.0 4.0
TX 75 SB P 11.0 2.0 2.0 2.0 11.5 11.5 11.5 4.0 4.0 4.0
TX 635 EB P 8.1 2.0 2.6 3.5 10.0 10.1 10.5 4.0 5.4 6.0
TX 635 WB P 7.4 1.0 1.5 2.5 10.0 10.4 10.5 5.5 5.5 5.5
TX 10 EB P 2.3 17.5 17.8 18.0 13.0 13.3 13.5 5.0 5.3 5.5
TX 10 WB P 1.9 17.5 17.5 17.5 12.5 12.5 12.5 5.5 5.5 5.5
TX 59 NB F 7.3 10.0 11.8 13.0 11.0 11.4 12.0 1.5 3.7 5.0
TX 59 SB F 6.0 9.0 10.6 12.0 11.0 11.8 12.0 2.0 3.2 5.0
TX 290 NB F 2.2 1.5 2.3 4.0 10.5 10.8 11.5 1.5 1.5 1.5
TX 290 SB F 3.2 1.5 1.5 1.5 11.0 11.0 11.0 2.0 2.0 2.0
Notes on column headings:
  • Hwy = State and highway number.
  • Dir = direction, where NB = northbound; SB = southbound; EB = eastbound; WB = westbound
  • F or P: F=flush buffer and P=pylons present within buffer area.
  • NW Length = sum of the lengths for non-weaving segments within the corridor.
  • SW = shoulder width (ft), LW = lane width (ft), BW = buffer width (ft).
  • Min = minimum width for the highway direction.
  • Avg = average width for the highway direction.
  • Max = maximum width for the highway direction.

Source: Texas A&M Transportation Institute

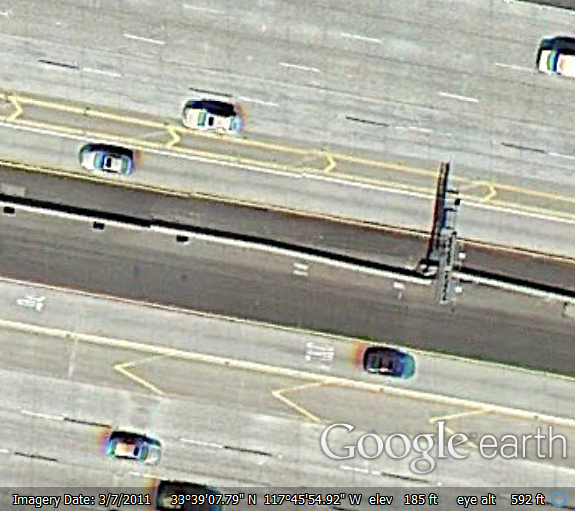

Figure 6. Graphic. Aerial photograph showing a portion of both sides of a freeway. The managed lanes on each side of the raised barrier are separated from the general-purpose lanes with a flush buffer that is wide. The wide buffer has chevrons marked within the buffer area.
Source: Google Earth

Figure 6. Graphic. Example of wide buffers on California I-405.

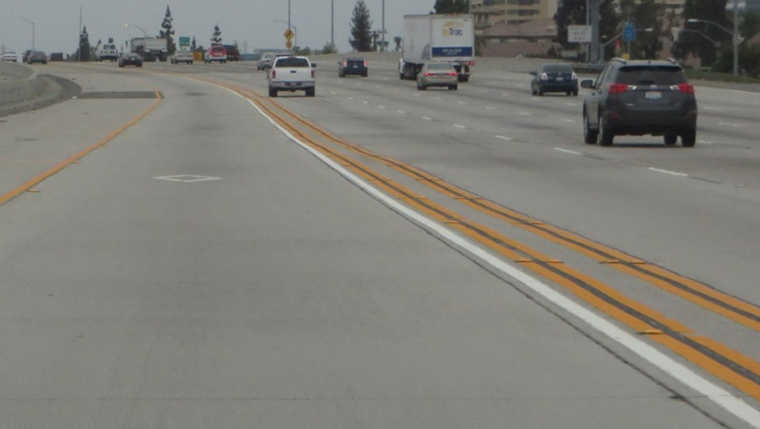

Figure 7. Graphic. Photo from a driver perspective of the buffer markings used to separate a managed lane from a general-purpose lane. The markings consist of five solid lines with a solid white line being next to the traffic in the managed lane. Beyond the solid white line are two sets of double yellow lines. The double yellow marking sets are separated by about 2 ft of pavement while within each set, the double yellow lines are separated by about 4 in of pavement.
Source: Texas A&M Transportation Institute

Figure 7. Graphic. Example of wide buffer in California.

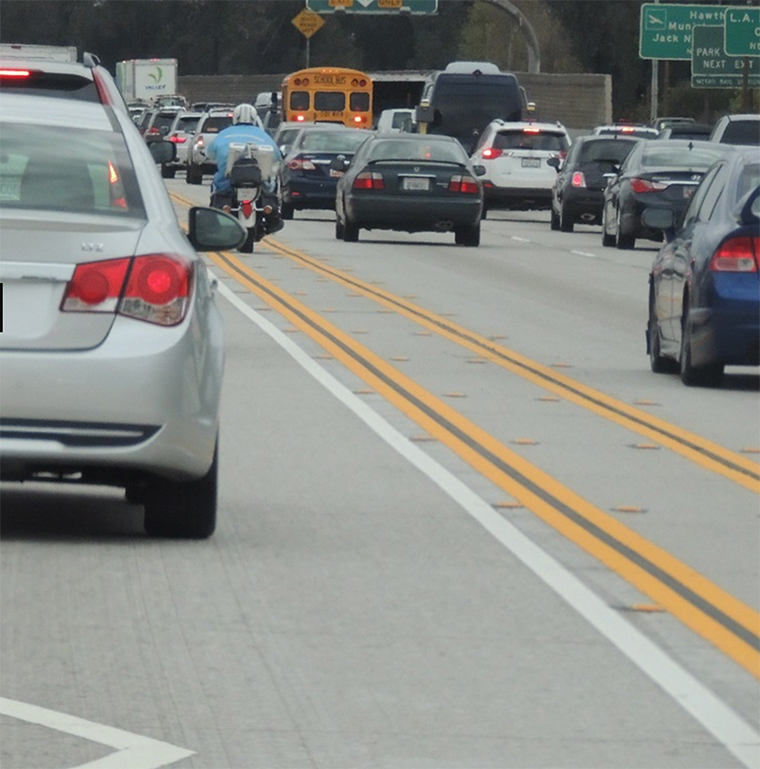

Figure 8. Graphic. Photo provides a similar view as in Figure 7 with the addition of a motorcyclist being in the space between the double yellow marking sets.
Source: Texas A&M Transportation Institute

Figure 8. Graphic. Another example of wide buffer, note motorcycle using the buffer area.

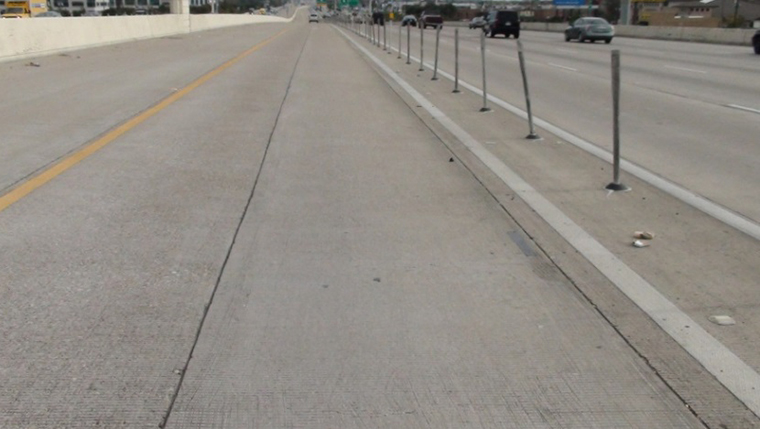

Figure 9. Graphic. Photo from a driver perspective of the buffer markings along with vertical pylons used to separate a managed lane from a general-purpose lane. The markings consist of two solid white lines. The separation between the two solid white lines is about 5 ft.
Source: Texas A&M Transportation Institute

Figure 9. Graphic. Example of pylons in buffer on Texas freeway.

Dataset Characteristics – Crashes

Texas Crash Data

Table 6 shows the number of crashes identified for each corridor in Texas, including all levels of severity. The number of crashes per year seems consistently increasing at each site, except for sites TX-DA-075[P] and TX-DA-635[P] where year 2009 shows atypically high and low counts, respectively. In the case of TX-DA-075[P], it appears to have been a rare year; in the case of TX-DA-635[P], however, the research team verified that during 2009, geometric characteristics of the managed lanes could not be verified for 11 out of the 20 segments within this site and therefore crashes for those segments are not represented in Table 6. Cells denoting "NA" indicate that no data was available for that corresponding site and year due to construction or a different cross section.

Table 6. Texas, number of crashes.
Site Dir Non-Weaving Length (mi) Crash Type 2009 2010 2011 2012 2013 2014 Total
TX-DA-075[P] NB 11.0 Total 404 304 347 397 347 380 2179
TX-DA-075[P] SB 11.0 Total 363 277 329 350 306 351 1976
TX-DA-635[P] EB 8.1 Total 82 180 208 189 204 257 1120
TX-DA-635[P] WB 7.4 Total 153 242 261 226 213 267 1362
TX-HO-010[P] EB 2.3 Total 25 57 57 41 75 86 341
TX-HO-010[P] WB 1.9 Total 0 15 23 22 21 15 96
TX-HO-059[F] NB 7.3 Total 112 112 90 113 101 90 618
TX-HO-059[F] SB 6.0 Total 113 91 89 116 95 89 593
TX-HO-290[F] NB 2.2 Total NA NA NA 11 43 35 89
TX-HO-290[F] SB 3.2 Total NA NA NA 20 65 62 147
Grand Total Both 60.4 Total 1252 1278 1404 1485 1470 1632 8521
TX-DA-075[P] NB 11.0 HOV/ML 0 0 2 0 1 8 11
TX-DA-075[P] SB 11.0 HOV/ML 0 3 2 0 2 7 14
TX-DA-635[P] EB 8.1 HOV/ML 0 1 0 0 1 2 4
TX-DA-635[P] WB 7.4 HOV/ML 0 1 1 2 2 2 8
TX-HO-010[P] EB 2.3 HOV/ML 0 1 1 0 1 1 4
TX-HO-010[P] WB 1.9 HOV/ML 0 0 0 0 0 0 0
TX-HO-059[F] NB 7.3 HOV/ML 0 0 1 0 0 0 1
TX-HO-059[F] SB 6.0 HOV/ML 0 0 0 0 0 0 0
TX-HO-290[F] NB 2.2 HOV/ML NA NA NA 0 0 0 0
TX-HO-290[F] SB 3.2 HOV/ML NA NA NA 1 1 3 5
Grand Total Both 60.4 HOV/ML 0 6 7 3 8 23 47
NA = not applicable because a different freeway configuration was present prior to 2012
Notes on columns:
  • Site = TX-YY-###[Z], where TX = Texas; YY = city, with DA = Dallas and HO = Houston; XXX = highway number; Z = buffer type with F = flush buffer and P = flush buffer with pylons.
  • Dir = direction, where NB = northbound; SB = southbound; EB = eastbound; WB = westbound
  • Non-Weaving Length = sum of the lengths for non-weaving segments within the corridor.
  • Crash Type, either high occupancy vehicle or managed lane (HOV/ML) (HOV or managed lane related crashes) or Total (all managed lane, buffer, or general-purpose-lane crashes on the freeway).
  • 2009, 2010, 2011, 2012, 2013, and 2014 = number of crashes in the given year.
  • Total = total number of crashes in the 2009-2014 time period.

Source: Texas A&M Transportation Institute

From this pool of crashes, the research team identified those that had an annotation of "HOV" or "MANAGED" lane resulting in identifying only 47 crashes. The distribution of these crashes is shown in Table 6. The research team suspects that this table may not include every HOV (or managed lane) crash, since these crashes were identified using annotation fields, instead of coded fields (as is the case in the California data). Since this is a very limited subset, the research team only conducted formal evaluations on total crashes.

California Crash Data

The research team matched the crash records obtained from HSIS to the mile post limits of the segments identified from satellite imagery. Crashes and traffic characteristics for the four routes selected for analysis were also obtained. The HSIS has AADT data that reflects number of vehicles for both directions on the freeway. The data were matched utilizing the route and county number along with beginning and ending milepost identified for each segment.

AADT counts are also available from the California Department of Transportation Performance Measurement System. This database is available online and provides information regarding the performance of California highways. Through a query on the website, a performance analysis report for each highway was generated. A report was made for the length of the highway in each direction from the years 2007 through 2011. The report includes information regarding the day, hour of the day, mile post where sensor is located, freeway number and direction, and several different methods to calculate AADT to account for missing data from the sensor. The data for HV (abbreviation used for HOV or managed lanes) were used in the analysis with managed-lane crashes.

Table 7 shows the number of managed-lane crashes (i.e., those crashes with a location type code of V (HOV lane) or W (HOV buffer) identified for each corridor in California, including all levels of severity. The top half of Table 7 lists the number of total freeway crashes by highway corridor. The length shown in the table corresponds to the sum of the non-weaving segment lengths included in the dataset. The yearly number of crashes per year seems consistent within each corridor with a general upward trend over time. The year of 2007 frequently has fewer crashes because it does not always reflect a full 12-month of data due to changes in managed-lane cross sections.

Table 7. California, number of crashes.
Highway Number Dir Non-Weaving Length (mi) Crash Type 2007 2008 2009 2010 2011 Total
105 EB 9.4 Total 147 313 308 302 322 1392
105 WB 13.4 Total 138 300 279 310 301 1328
134 EB 8.1 Total 102 267 282 304 268 1223
134 WB 7.6 Total 74 250 269 260 262 1115
210 EB 19.1 Total 125 484 517 598 592 2316
210 WB 14.2 Total 94 415 374 445 496 1824
405 NB 29.7 Total 958 1154 1069 1097 1268 5546
405 SB 26.6 Total 383 1061 990 1066 1144 4644
Grand Total Both 128.0 Total 2021 4244 4088 4382 4653 19388
105 EB 9.4 MLB 13 28 36 24 33 134
105 WB 13.4 MLB 16 33 23 24 21 117
134 EB 8.1 MLB 14 29 18 29 23 113
134 WB 7.6 MLB 4 14 18 18 24 78
210 EB 19.1 MLB 15 57 60 60 84 276
210 WB 14.2 MLB 21 43 50 51 67 232
405 NB 29.7 MLB 104 119 111 99 115 548
405 SB 26.6 MLB 40 115 115 108 119 497
Grand Total Both 128.0 MLB 227 438 431 413 486 1995
Notes on columns:
  • Dir = direction, where NB = northbound; SB = southbound; EB = eastbound; WB = westbound
  • Non-Weaving Lengths = sum of the lengths for non-weaving segments within the corridor.
  • Crash type, either MLB (managed lane or buffer related crashes) or Total (all managed lane, buffer, or general-purpose-lane crashes on the freeway).
  • 2007, 2008, 2009, 2010, 2011 = number of crashes in the given year. Note that 2007 frequently included less than a full 12 months of crashes due to changes in the managed lane cross section.
  • Total = total number of crashes in the 2007-2011 time period.

Source: Texas A&M Transportation Institute
